ZOOMLION 67m Truck Mounted Concrete Pump 67X-7RZ

Name: ZOOMLION 67m Truck Mounted Concrete Pump 67X7RZ
Brand: ZOOMLION
Price: 1 USD

ZOOMLION 67m Truck Mounted Concrete Pump 67X-7RZ Manufactures

Place of Origin : Hunan, China

Brand Name : ZOOMLION

Supply Ability : 1 Unit/Units per Month

Price : $1,088,888.00

MOQ : 1

Delivery Time : 25 DAYS

Condition : New

Video outgoing-inspection : Provided

Machinery Test Report : Provided

After-sales Service Provided : Video technical support, Online support, Engineers available to service machinery overseas

Contact Now

ZOOMLION 67m Truck Mounted Concrete Pump 67X-7RZ

The strengthens and reliability job after job. The Boom of ZOOMLION truck mounted pumps will be Your alley day after day. The design of each section has been optimized to be always effective thus avoid stress overload and extend the maintenance intervals.

Boom placing made intuitive and easy to operate that’s for what ZOOMLION truck mounted concrete pumps are made. The sections of the boom can be configured with precision allowing to reach every corner of the construction site even in narrow spaces, cutting the working time. With boom from 36 up to 56 m there will always be the right model to be chosen with always the greatest pumping capacity, precision and speed of execution needed. ZOOMLION 67m Truck Mounted Concrete Pump 67X-7RZ

Pump Unit	Max. Output	180 m3/h
	Max. Concrete Output Pressure	9 MPa
	Rated Working Pressure	35 Mpa
	Pumping Frequency	27 min-1
	Hopper Capacity	600 L
	Filling Height	1540 mm
	Hydraulic System Type	Closed Loop
	Distribution Valve	S valve
	Oil Cylinder Dia.*Stroke	ψ130*2100 mm
	Concrete Cylinder Dia.*Stroke	ψ 230*2100 mm
	Hydraulic Oil Cooling	Wind cooling
	Max. Aggregatte Dimension	40 m

Boom Section	Placing Depth	52 m
	Max. Horizontal Distance	48 m
	Max. Placing Depth	37.6 m
	Slewing Angle	±270°
	Boom Number	6
	The Length of Boom Section	10410/9120/8690/9680/6600/3500 mm
	Sections Folding Angle	90°/180°/180°/240°/195°/210°
	Pipe Diameter	125 mm
	End Hose Length	3000 mm
	Min. Height of Opening Placing Boom	10900 mm
	Outriggers Span(frontrearside)	93001197510422 mm

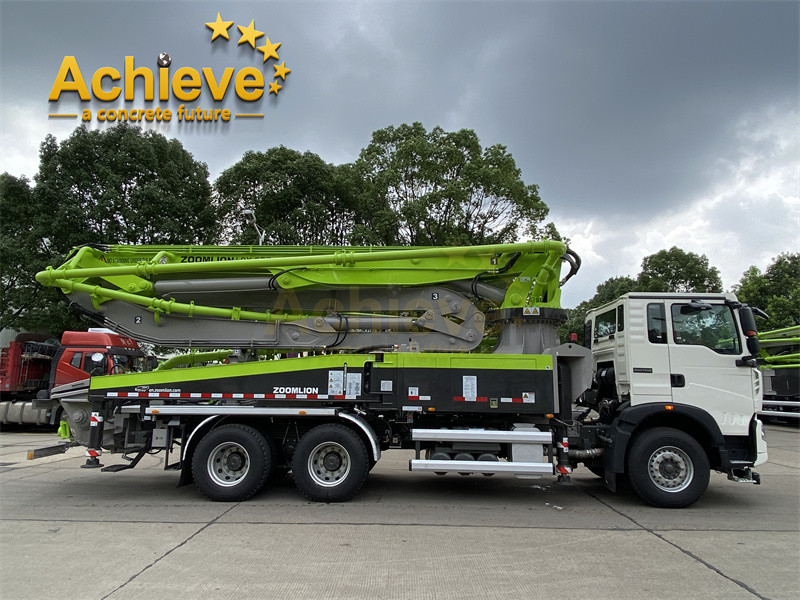

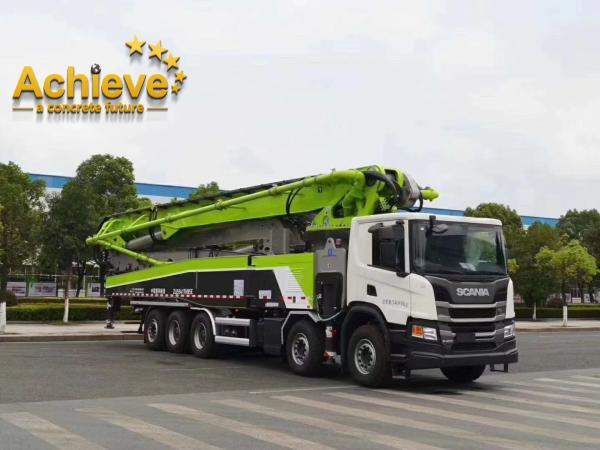

ZOOMLION 67m Truck Mounted Concrete Pump 67X-7RZ Images
