| Working parameters |

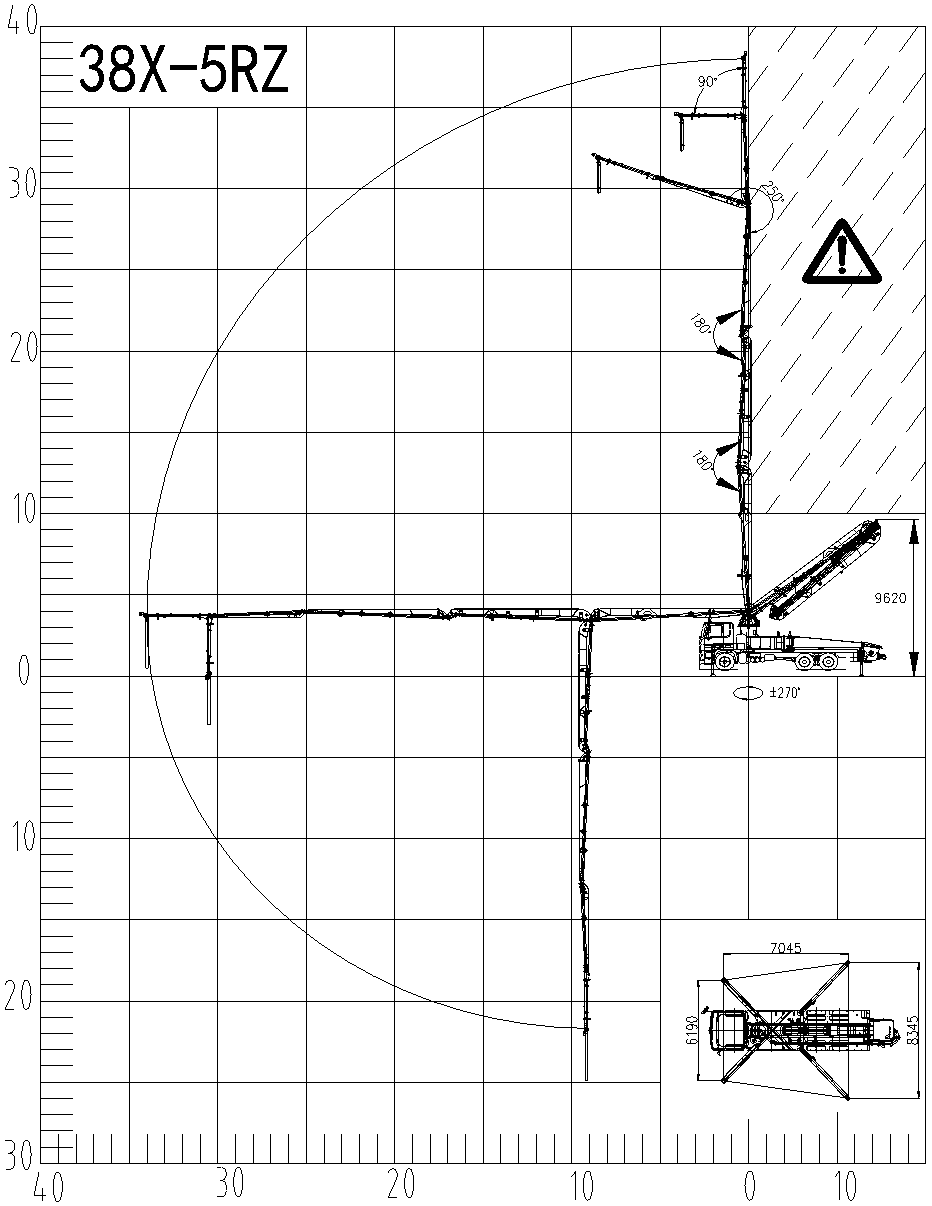

| Maximum pumping height (m) | 37 |
| Vehicle weight (kg) | 28350 |
| Pumping height (m) | 36-40 meters |
| Chassis parameters |
| Chassis model | HINO FS1ERV |
| Engine model | E13C TL |
| Engine power (kW) | 302/1800 |
| Displacement (L) | 12.913 |
| Pumping system parameters |
| Theoretical displacement of concrete is low (m3/h) | 100 |
| Theoretical displacement of concrete at high pressure (m3/h) | 120 |
| Theoretical pumping pressure is low (Mpa) | 8.3 |
| Theoretical pumping pressure at high pressure (Mpa) | 12 |
| Theoretical pumping times low pressure (times/min) | 18 |
| Theoretical pumping times high pressure (times/min) | 26 |
| Conveying cylinder inner diameter (mm) | 260 |
| Delivery cylinder stroke (mm) | 2100 |
| Vehicle shape parameters |
| Overall length (mm) | 11720 |
| Overall width (mm) | 2500 |
| Overall height (mm) | 4000 |
features
appllicatoon
PACKAGING & DELIVERY
Comply with export packaging requirements
1. Concrete mixer pump, trailer concrete pump etc small machinery in container.
Spare parts wooden or steel box.
2. Concrete pump truck and concrete mixer truck etc equipment will be shipped by
RORO ship,Bulk cargo ship or Flat rack.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
2.what can you buy from us?
Concrete Pump Truck And Placing Boom,Concrete Pump Pump Pipe And Pump Parts,Steel Pipe And Pipe Fitting,Steel Flange,Oil Casing Pipe
3. why should you buy from us not from other suppliers?
With 10 years experience, we are specialized in constuction engineering, supplying different concrete pump pipes and other spare parts around the world. In 2016, we obtained ISO9000 quality system certificate. High quality and service is our pursuit!
4. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,GBP,CNY;
Accepted Payment Type: null;
Language Spoken:English,Chinese
